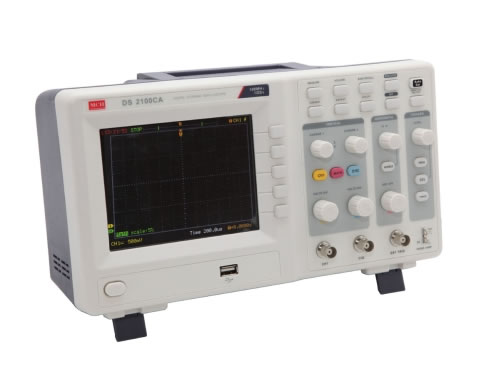

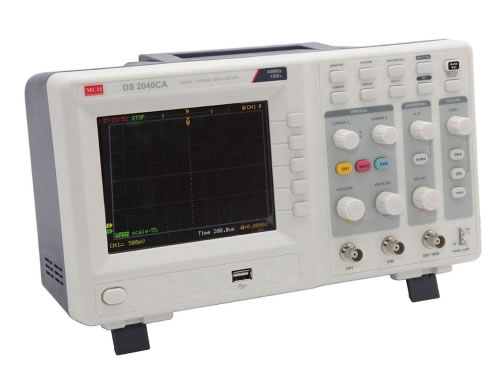

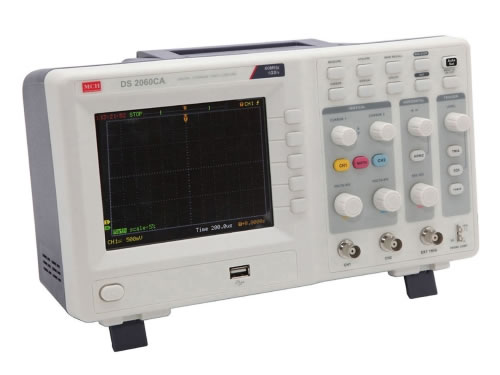

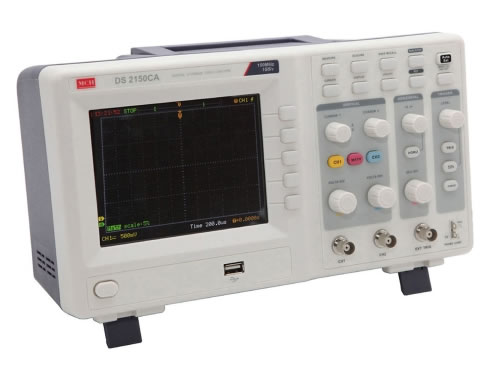

Digital Storage Oscilloscope

Description
Digital storage oscilloscope stores and analyzes the signal digitally rather than using analogue techniques. The input analogue signal is sampled and then converted into a digital record of the amplitude of the signal at each sample time.

Application
Digital storage oscilloscope is widely used in science, pharmacy, engineering and telecommunication industries.

Classification
Digital storage oscilloscope can be classified into 25 MHz, 40 MHz, 60 MHz, 100 MHz, 1500 MHz and 200 MHz types.

Features
1. Digital storage oscilloscope is able to show a large number of pre-trigger information and store the waveform for a long time.
2. Waveform information can be processed by mathematical method.
3. Waveform can be transmitted to the computer for storage or further analysis.
4. It can make hard copies on the printer or plotter for preparation of documents.

Advantages
1. Digital storage oscilloscope is outstanding in measuring logical circuit.
2. It has the advantages of small volume, low power consumption and easy operation.
3. It can build waveforms after the signal is digitized thus the machine has the advantages of memorizing and storing the observed signals.
4. Digital storage oscilloscope has very high bandwidth and the maximum is up to 200 MHz.
5. The highest sampling rate of digital oscilloscope is up to 1GS/s thus it’s not prone to produce signal aliasing.
6. It has more trigger modes such as pre-trigger, logic trigger and pulse width trigger.
7. It can be connected to the computer as well as print, archive and analyze documents.
8. Digital storage oscilloscope has powerful waveform processing ability and is able to measure frequency, rise time and pulse width automatically.

Cautions
1. Avoid hot and humid places and frequent start-up and shutdown.
2. When operator observes the bright spot in the screen and makes adjustments, its brightness should be moderate.

Maintenance
1. Choose oscilloscope with corresponding bandwidth according to actual requirement. Generally the frequency bandwidth is 2-5 times of test signal.
2. Choose power system with stable voltage as it helps to reduce interference and stabilize the test signal.
3. The instrument should avoid moisture, dropping, dust and interference from the around strong magnetic field.

Payment, Packaging and Delivery
1. T/T or L/C is accepted terms of payment.
2. Digital storage oscilloscopes are packed in standard carton boxes.
3. Type of shipping is by sea, by air or land transportation.

Service
We provide one-year warranty period and technical material support for digital storage oscilloscope.
