  • 10 MHz DDS Function Generator
  • 10 MHz DDS Function Generator10 MHz DDS function generator generates different type of electrical waveforms over a wide range of frequencies. Arbitrary waveform generator can be used for developing, testing and repairing electronic equipment.1. 10 MHz DDS function generator features high resolution, accuracy and stability. 2. VFD display and rubber keypad of arbitrary waveform generator...
  • 20 MHz DDS Function Generator
  • 20 MHz DDS Function Generator20 MHz DDS function generator is an advanced signal generator that can generate a waveform of almost any shape. It can be used for developing, testing and repairing electronic equipment.1. 20 MHz DDS function generator features high resolution, accuracy and stability. 2. VFD display and rubber keypad allow easy operation of arbitrary waveform generator...

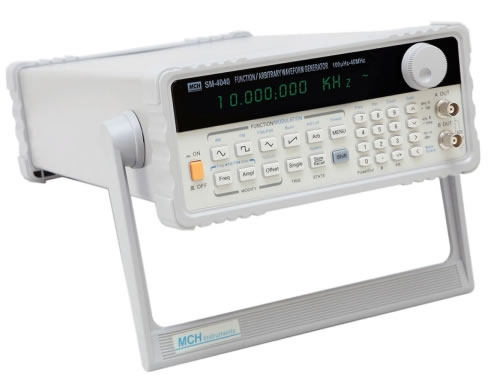

  • 40 MHz DDS Function Generator
  • 40 MHz DDS Function Generator40 MHz DDS function generator is an advanced signal generator that can generate a waveform of almost any shape. This function signal generator is made up of phase accumulator, waveform ROM, digital-analogue converter and low pass filter.1. 40 MHz DDS function generator has the advantages of high resolution, accuracy and stability. 2. Wide range of sweep freq., start...
  • 80 MHz DDS Function Generator
  • 80 MHz DDS Function Generator80 MHz DDS function generator is used to generate different types of electrical waveforms over a wide range of frequencies. This function signal generator can be used to develop, test and repaire electronic equipment.1. 80 MHz DDS function generator has high resolution, accuracy and stability. 2. VFD display and rubber keypad of this function signal generator...

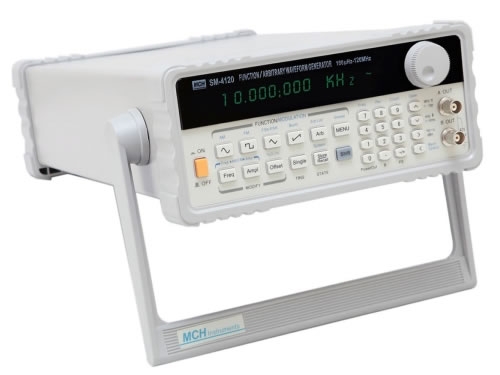

  • 120 MHz DDS Function Generator
  • 120 MHz DDS Function Generator120 MHz DDS function generator is an advanced signal generator that can generate a waveform of almost any shape. This function signal generator is made up of phase accumulator, waveform ROM, digital-analogue converter and low pass filter. It can be used for developing, testing and repairing electronic equipment.1. 120 MHz DDS function generator has the advantages of...

DDS Function Generator

Description
DDS function generator is an advanced signal generator that can generate a waveform of almost any shape. The generated waveform can then be inserted into the device you wish to test and then make an analysis as it progresses through the device to confirm correct operation, or to highlight a fault. Arbitrary waveform generator is made up of phase accumulator, waveform ROM, digital-analogue converter and low pass filter.

Application
1. DDS function generator can be used for electronic testing and design as well as functional test.
2. It is widely used in education and training fields.

Advantages
1. Digital circuit is used in most operation thus DDS function generator shares many advantages of digital operation.
2. As the signal only converts to analog status at the end of synthetic phase, thus it reduces the complexity of arbitrary waveform generator in multiple ways and also improves the stability of it.
3. DDS function generator is equipped with a waveform memory thus it is able to reproduce almost any waveform.

Features
1. Arbitrary waveform generator has user interface which is convenient for the users to set parameters.
2. It has modulation function and additional functions such as amplitude modulation and frequency modulation on output signals.
3. DDS function generator also has the functions of digitally displaying the output signal frequency and voltage amplitude.

Classification
DDS function generator can be classified into 10 MHz, 20 MHz, 40 MHz, 80 MHz and 120 MHz types.

Notes
1. To avoid electrical shock, the grounding conductor of power cord should be connected to ground.
2. The output signal should be slowly adjusted from small to large.
3. Every time you transform the frequency or waveform, please turn the output signal to minimum value.
4. DDS function generator should be preheated for 10 minutes before starting.
5. Before arbitrary waveform generator is connected to the power, please check the power supply voltage and frequency to ensure if they are suitable for the instrument.
6. Avoid circuit exposure and operating in inflammable and explosive environment.
7. Choose suitable fuse wire and line voltage.

Maintenance
1. Keep regular cleaning in order to maintain good ventilation.
2. Do not spray cleaner directly onto the instrument. Please use a soft cloth with mild detergent and water.
3. Please keep tidy and dry on the surface of arbitrary waveform generator.
4. Avoid operating it in moist environment and keep proper ventilation.

Payment, Packaging and Delivery
1. T/T or L/C is accepted terms of payment.
2. Arbitrary waveform generators are packed in standard carton boxes.
3. Type of shipping is by sea, by air or land transportation.

Service
We provide one-year warranty period as well as technical and material support for signal generator.
